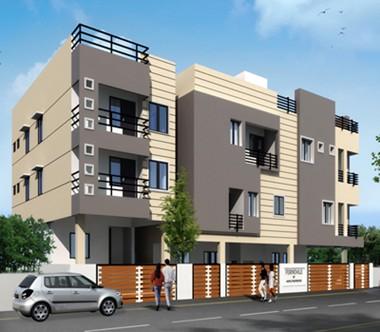

Ample Fern Dale

Muglivakkam, Chennai

About Ample Fern Dale

CIVIL:
- 1. RCC STRUCTURE WITH EARTHQUAKE RESISTANT SEIZMIC DESIGN code applied.

CONCRETE:
ALL RCC FOOTING/SLAB / BEAM/ COLOUMN are done by machine mix ratio 1:11/2:3 M20 grade concrete with proper side plywood board shuttering bottom Wooden planks and PROPS and span used for centering.

REINFORCEMENT:
- STANDARD ISI BRAND WITH FE 500 GRADE USED as per structural detailing in all stages

SOIL TEST
- Foundation done with soil test report according to soil sbc report.

BRICK WORK:
OUTER WALL 8”POROTHERM LIGHT WEIGHTBLOCKS used and thickness with 1:6 RATIO
INNER PARTION WALL 4” POROTHERM LIGHT WEIGHT BLOCKS used thickness 1:4 RATIO using hoop iron mesh in 3ft intervals to avoid wall cracks in future.
ADVANTAGES OF POROTHERM BLOCKS:

1.60% LESS IN WEIGHT
- 2. SAVINGS ON STEEL AND CONCRETE
- 3. FASTER IN CONSTRUCTION AND EASY HANDLING
- 4.45% BETTER THERMAL INSULATION ALLOWS FLOW OF AIR
- 5. PREVENTS HEAT FROM OUTSIDE.
- 6. NON TOXIC AND POLLUTION FREE GREEN BUILDING CONCEPT.
- 7.EASY FOR CUTTING AND CHASING FOR ELECTRICLA AND PLUMBING WORKS
- 8.HAIR LINE CRACKS ARE MUCH REDUCED IN 4” PARTITION WALLS

LINTEL&LOFTS :
- 7ft form the floor lvl Loft width 2ft on one side wall will be given (shorter side)

COLOUMN &BEAM :
- All column and beam joint chicken mesh provided and all electrical junctions mesh will be given.

Flooring:
LIVING/DINING/KITCHEN: VIRTRIFIED NANO STAIN FREE TILE OF GOOD BRAND 2X2
LOBBY: GRANITE OR MARBLE PROVISION
KITCHENWALL: GLAZED TILE UPTO 3FT FROM THE COUNTER LVL
COUNTER: BLACK GRANITE SLAB 2FT WIDTH WILL BE PROVIDED WITH S.S SINK WITH OR WITHOUT DRAIN BOARD.
- NEAR TO ALL MAJOR LOCALITIES

TOILETS:
WALL TILES: 13X10 concept tiles of reputed brand Johnson or equivalent to be used tiling to be done up to ceiling height for all toilets.
FLOOR: FLOOR: 1X1 ANTI SKID
SANITARYWARE:CLOSETS/WASH BASINS

HINDWARE / PARRYWARE
- SLIMLINE MODEL standard white color (color charges additional)
Provision from builder: 1 basin for dining / 1 in master bed room. (Color additional charge)

PLUMBING:
- 1. Concealed PVC outer pipeline for bathrooms of high quality of schedule kg finolex brand used.
- 2. CPVC concealed lines in all bathrooms for Hot &Cold water ASHIRWAD brand used
- 3. Sewage pipelines of ISI brand for underground drainage with chamber provision and connected to septic tank.
- 4. O.H.T witH bore water and Sump water provision
- 5. 5. Kitchen with Bore water and sump water taps.
- 6. U.G sump with 12000 liters capacity
- 7. O.H.T with 6000 liters capacity

WATER PROOFING:
- 1. All bathrooms are treated by waterproofing chemical properly cleaned and treated in the inlet and all out let joints to avoid and protect leakage in roof for future.
- 2. Terrace is also treated by waterproofing to avoid leakage and heat protection tiles provided. Mangalore 1st quality tiles.
- 3. U.G SUMP for both blocks and septic tank bottom part water proofed. 4. Lift Pit Water proofed.

PAINTING:
INNER WALLS: 1 coat with white cement/2coats with Birla putty/1coat with Asian wall primer and final with 2coats with ASIAN tractor emulsion.
OUTER WALLS: ACE exterior emulsion used.
MIAN DOOR: Teak wood polish
Bedroom doors: Enamel painting
Common area:OBD with putty finishing and emulsion painting done.
Window grills: Enamel paint

JOINEIRES:
Main Door: Main Door: Teak wood frame with imported Malaysian wood shutter with brass hinges and godrej vertibolt 1way lock provision.
Bedroom/service doors:Bedroom/service doors: Molded skin door with mortise lock provided.
Bathroom door: Bathroom door: PVC single panel or Water proof ply wood shutters with frame hardened provision with door handle provided.
Common area Railing: MS design or Stainless steel hand rails provided.

WINDOWS:
: All aluminum casement alutek Upvc style windows provided with 4mm clear glass and handles.
